GAG高光裝飾膜生產線
更新：2022/11/23 10:34:42 點擊：
- 產品品牌 金緯機械
- 產品型號 JWELL-2022
- 產品描述
金緯機械推出新一代GAG裝飾膜生產線，具有低能耗、效率高的優點，目前可提供技術成熟的同向雙螺桿擠出生產線和單螺桿擠出生產 線。 Jwell Machinery has launched a new...
產品介紹

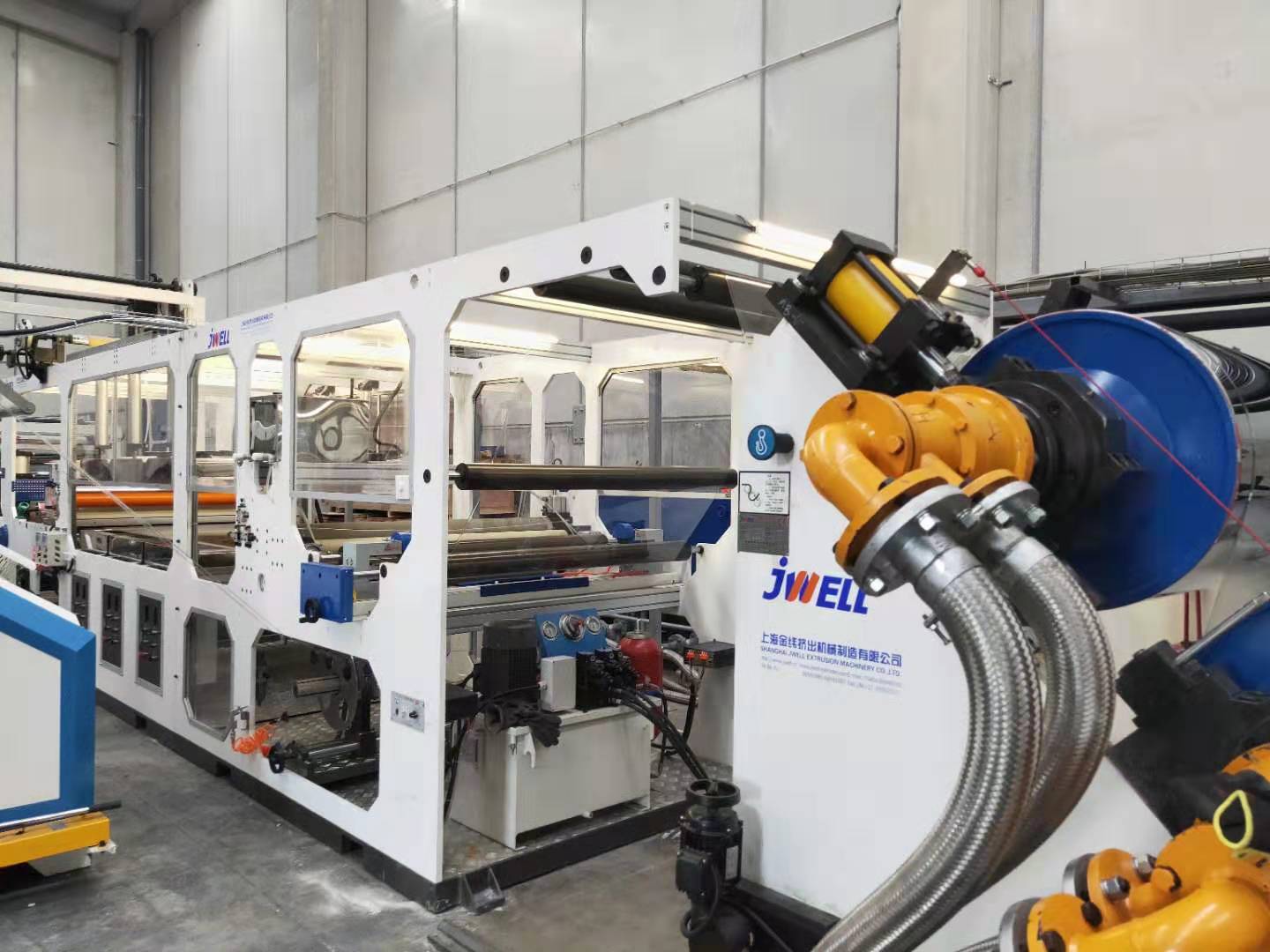

GAG高光裝飾膜生產線
GAG High Gloss Decorative Sheet Production Line
金緯機械推出新一代GAG裝飾膜生產線，具有低能耗、效率高的優點，目前可提供技術成熟的同向雙螺桿擠出生產線和單螺桿擠出生產
線。
Jwell Machinery has launched a new generation of GAG decorative film production line, which has the advantages of low
energy consumption and high efficiency. Currently, it can provide mature co-rotating twin-screw extrusion production lines and
single-screw extrusion production lines.
使用物料 Use Material：APET、PETG
片材類型 Sheet Type：單面磨砂片、高光透明片、顏色磨砂片、高光顏色片、啞光薄膜、透明薄膜；
Single-sided frosted film, high-gloss transparent film, color frosted film, high-gloss color film, matte film, transparent film.
片材特點 Sheet Features：
GAG裝飾膜適用于家具表面的環保平貼用膜，產品使用綠色環保材料，具有出色的耐磨、耐污、耐黃變等性能，使家具表面呈現出各種時
尚靚麗的視覺效果。
GAG decorative film is suitable for environmental protection flat film on furniture surface. The product uses green environmental
protection material, which has excellent wear resistance, stain resistance, yellowing resistance and other properties, so that
the furniture surface presents various fashionable and beautiful visual effects.
設備特點 Features：
◎采用全新螺桿組合形式，使物料塑化充分、色母分散均勻，確保了產品良好的韌性和色澤均勻度；
◎采用高效三級抽真空系統，有效去除熔體中水份及單分子揮發物，提升制品性能；
◎采用超鏡面合金鋼薄壁輥筒，即滿足制品的快速冷卻定型，又能提升裝飾膜表面質量；
◎采用自動翻轉雙工位收卷機，實現自動裁切、自動上卷、確保寬幅片材生產中的穩定生產，收卷軸采用伺服電機驅動，可實現多段張力
或錐度收卷，確保收卷卷材端面整齊，張力穩定，并能夠滿足3英寸和6英寸氣漲軸的切換；
◎整線采用一流變頻控制和伺服控制，實現高效、高精度控制，可通過人機界面HMI，實現整線參數預覽、參數調整、一鍵聯動，使操作
更加方便；
◎24小時網絡遠程服務，實現故障診斷、錯誤分析及故障排除，減少了調試和生產停機時間。
◎Using a new screw combination form, the material is fully plasticized and the color masterbatch is evenly dispersed, ensuring
good toughness and color uniformity of the product;
◎Adopt high-efficiency three-stage vacuum system to effectively remove water and monomolecular volatiles in the melt and
improve product performance;
◎The ultra-mirror alloy steel thin-walled roller is used, which not only satisfies the rapid cooling and shaping of the product,
but also improves the surface quality of the decorative film;
◎The automatic turning double-station winder is adopted to realize automatic cutting, automatic winding, and ensure stable
production in the production of wide sheets. The winding shaft is driven by a servo motor, which can realize multi-stage tension
or taper winding to ensure the The end face of the coil is neat, the tension is stable, and it can meet the switching of 3-inch and
6-inch air shafts;
◎The whole line adopts first-class frequency conversion control and servo control to realize high-efficiency and high-precision
control. Through the human-machine interface HMI, the whole line parameter preview, parameter adjustment and one-key
linkage can be realized, which makes the operation more convenient;
◎24-hour network remote service to realize fault diagnosis, error analysis and troubleshooting, reducing debugging and
production downtime.
